Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? Some questions / requests: Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. Regards, Mark.
Mark, great to hear about user activity :-) 1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. 3) I'll forward your specification to the german Twizy forum. Regards, Michael Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com <http://openvehicles.com>. Perhaps the word is getting out?
Some questions / requests:
1. Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
2. How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
3. Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26
Michael, One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? Michael J: is that the same connector and pins as you are using for the Volt? Regards, Mark On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out?
Some questions / requests:
Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Mark, yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line. I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally. But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J. Regards, Michael Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com <http://openvehicles.com>. Perhaps the word is getting out?
Some questions / requests:
1. Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
2. How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
3. Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok. I think Volt bus we are using is on the same pins: http://www.evtools.info/ChevyVoltOBD2CAN.html Maybe 1 cable can do both? Regards, Mark On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out?
Some questions / requests:
Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Hi, i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused Pin 16 B+ (for scan tool power) OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech? Bye Michael Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out?
Some questions / requests:
Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well. Regards, Michael Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout:

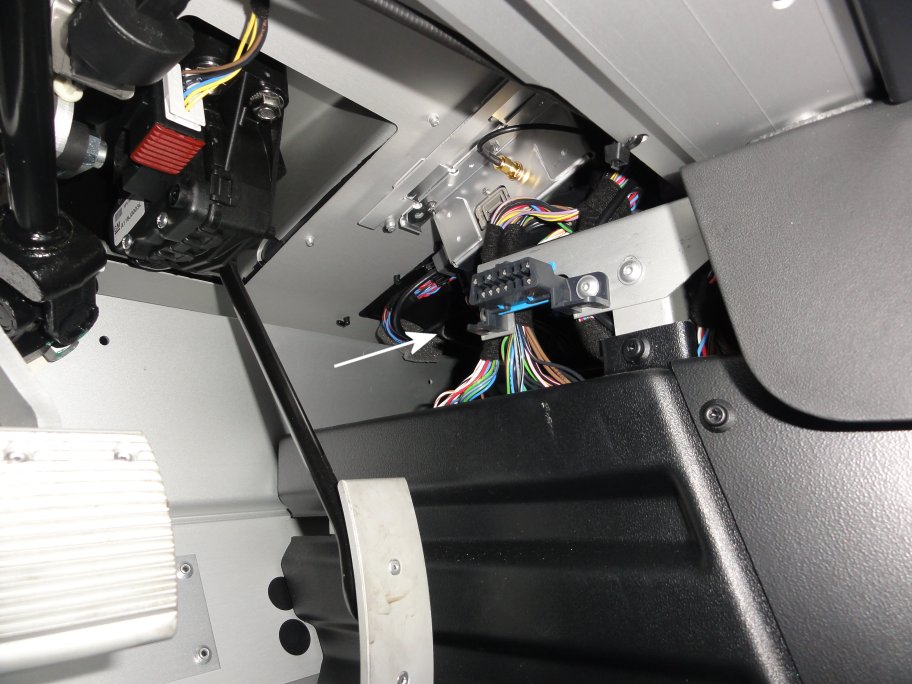

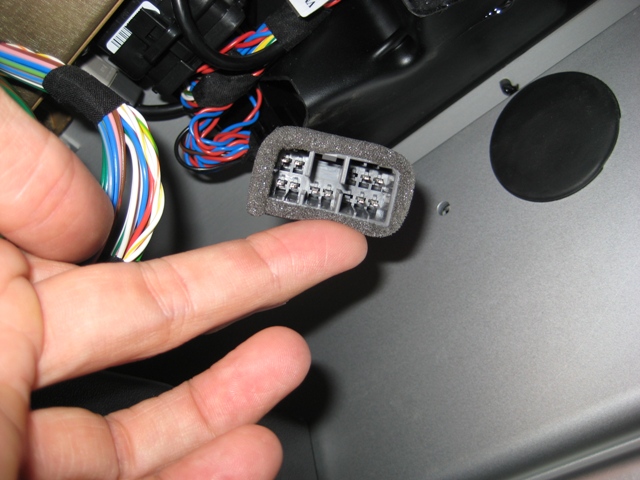

Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDIISub-DSignal 169+12V 46+3GND-Chassis 67CAN_H 142CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net <mailto:mark@webb-johnson.net>>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson:
Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already.
I'm starting to see some Twizy users register on openvehicles.com <http://openvehicles.com/>. Perhaps the word is getting out?
Some questions / requests:
1. Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up?
2. How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this?
3. Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png.
Regards, Mark.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26

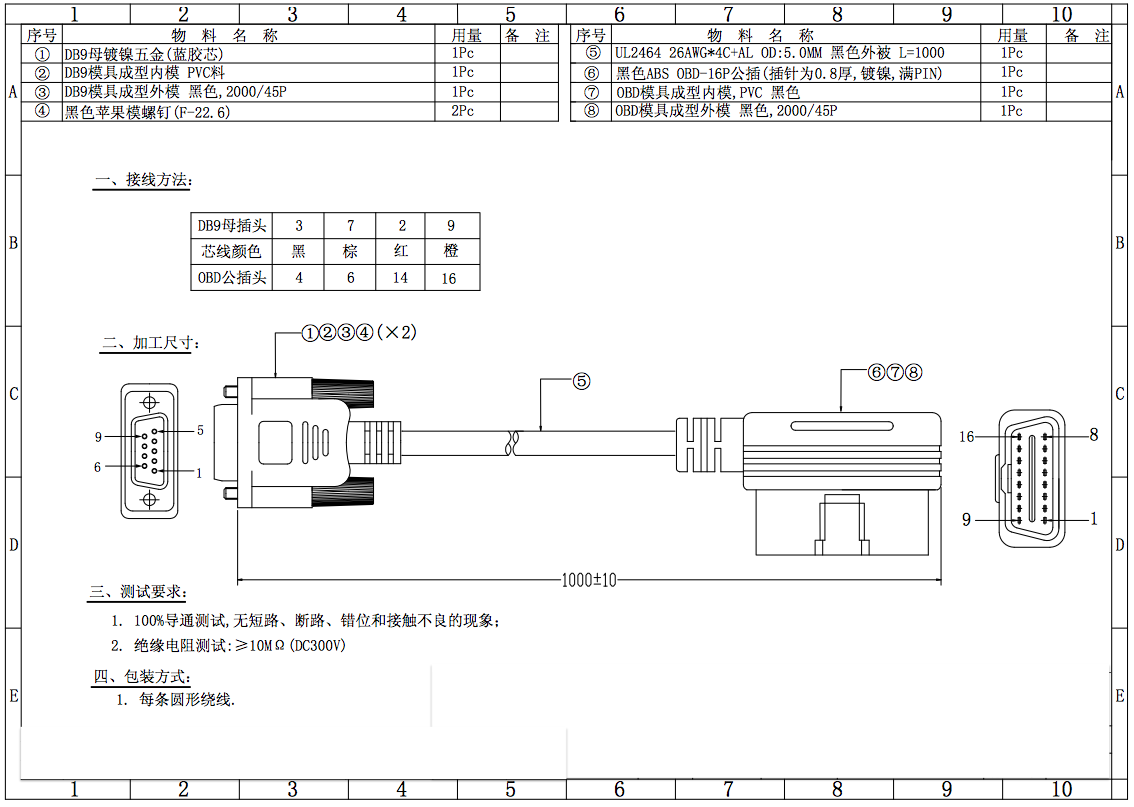

OK, so I think the pinouts we require are as per Michael B's diagram: J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power A right angle J1962-M plug and about 1metre cable should be ok. This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus. Does that sound ok? I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech. Regards, Mark. On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
great to hear about user activity :-)
1) I just created an OVMS to OBD2 cable image and checked it in: https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets.
3) I'll forward your specification to the german Twizy forum.
Regards, Michael
Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: > > Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. > > I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? > > Some questions / requests: > > Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? > > How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? > > Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. > > Regards, Mark. > > > > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units). Is the specification below ok? Any problems? Regards, Mark. On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
Michael,
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote:
> Mark, > > great to hear about user activity :-) > > 1) I just created an OVMS to OBD2 cable image and checked it in: > https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... > As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. > > 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. > > 3) I'll forward your specification to the german Twizy forum. > > Regards, > Michael > > > Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >> >> Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. >> >> I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? >> >> Some questions / requests: >> >> Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? >> >> How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? >> >> Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. >> >> Regards, Mark. >> >> >> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > -- > Michael Balzer * Paradestr. 8 * D-42107 Wuppertal > Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 > <dexter.vcf> > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Just to clarify, would this work for the Tesla Roadster? Looking at the photo, the connector looks different. Does that mean the Tesla does not have an OBD2 connector? Is it the older OBD? Is it something that only Tesla uses for diagnostics? Sorry for all of the questions, but I've never connected anything to OBD ports on any of my cars, even though I'm aware of lots of products that are available. The OVMS is my first. Brian On Nov 12, 2012, at 03:09, Mark Webb-Johnson wrote: I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units). Is the specification below ok? Any problems? Regards, Mark. On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb- johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb- johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson:
One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct?
Michael J: is that the same connector and pins as you are using for the Volt?
Regards, Mark
On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: > 1) I just created an OVMS to OBD2 cable image and checked it in: > https://github.com/dexterbg/Open-Vehicle-Monitoring-System/ > commit/a7c3a3e8f12d7759b896bb75c8e570ebc10ec11a > As OBD2 is standard incl. CAN pinout, this should be valid > for any OBD2 port, so could be added to the FastTech OVMS > product line. It's not a standard cable, or at least none I > know of.
Brian, The Tesla Roadster has two connectors - (1) a proprietary connector for 3 CAN buses that we call DIAG, and (2) an OBDII port. OVMS uses the DIAG connector to get access to a single CAN bus that contains the messages we need. I recall that by law, all cars sold in USA must have an OBDII connector and it is found close to the steering wheel (something like within 2 feet?). Regards, Mark. On 13 Nov, 2012, at 6:08 AM, HONDA S-2000 wrote:
Just to clarify, would this work for the Tesla Roadster? Looking at the photo, the connector looks different. Does that mean the Tesla does not have an OBD2 connector? Is it the older OBD? Is it something that only Tesla uses for diagnostics? Sorry for all of the questions, but I've never connected anything to OBD ports on any of my cars, even though I'm aware of lots of products that are available. The OVMS is my first.
Brian
On Nov 12, 2012, at 03:09, Mark Webb-Johnson wrote: I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: > One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? > > Michael J: is that the same connector and pins as you are using for the Volt? > > Regards, Mark > > On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: >> 1) I just created an OVMS to OBD2 cable image and checked it in: >> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Found some nice pics that might help: Tesla Roadster OBDII port (courtesy fuzzylogic), drivers side centre console: Tesla Roadster DIAG connector (courtesy of scott451), passenger footwell: Regards, Mark. On 13 Nov, 2012, at 8:43 AM, Mark Webb-Johnson wrote:
Brian,
The Tesla Roadster has two connectors - (1) a proprietary connector for 3 CAN buses that we call DIAG, and (2) an OBDII port.
OVMS uses the DIAG connector to get access to a single CAN bus that contains the messages we need.
I recall that by law, all cars sold in USA must have an OBDII connector and it is found close to the steering wheel (something like within 2 feet?).
Regards, Mark.
On 13 Nov, 2012, at 6:08 AM, HONDA S-2000 wrote:
Just to clarify, would this work for the Tesla Roadster? Looking at the photo, the connector looks different. Does that mean the Tesla does not have an OBD2 connector? Is it the older OBD? Is it something that only Tesla uses for diagnostics? Sorry for all of the questions, but I've never connected anything to OBD ports on any of my cars, even though I'm aware of lots of products that are available. The OVMS is my first.
Brian
On Nov 12, 2012, at 03:09, Mark Webb-Johnson wrote: I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote: > yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line. > > I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally. > > But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J. > > Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >> One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? >> >> Michael J: is that the same connector and pins as you are using for the Volt? >> >> Regards, Mark >> >> On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: >>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of.
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing. Based on our specification: J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length. The resulting build spec sheet is shown below. Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts? Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind? We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good. Thanks, Mark. On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
Mark,
yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line.
I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally.
But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J.
Regards, Michael
Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: > Michael, > > One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? > > Michael J: is that the same connector and pins as you are using for the Volt? > > Regards, Mark > > On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: > >> Mark, >> >> great to hear about user activity :-) >> >> 1) I just created an OVMS to OBD2 cable image and checked it in: >> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. >> >> 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. >> >> 3) I'll forward your specification to the german Twizy forum. >> >> Regards, >> Michael >> >> >> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>> >>> Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. >>> >>> I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? >>> >>> Some questions / requests: >>> >>> Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? >>> >>> How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? >>> >>> Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. >>> >>> Regards, Mark. >>> >>> >>> >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> >> -- >> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >> <dexter.vcf> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf> _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Looks correct. 1 m length should make placing the module in the right (lockable) glove box possible, so that's OK too. I had to pay EUR 10 = ~ US$ 13 for the OBD2 plug alone, so the pricing will be fine. Regards, Michael Am 04.12.2012 06:06, schrieb Mark Webb-Johnson:
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing.
Based on our specification:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length.
The resulting build spec sheet is shown below.
Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts?
Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind?
We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good.
Thanks, Mark.
On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net <mailto:mark@webb-johnson.net>> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
_J1962-M__DB9-F__Signal_ 43Chassis/Power GND 67CAN-H 142CAN-L 169+12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout:
Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDIISub-DSignal 169+12V 46+3GND-Chassis 67CAN_H 142CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net <mailto:mark@webb-johnson.net>>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
> Mark, > > yes, that's chassis ground -- shouldn't it be? I interpreted the > OVMS GND as the ground for the supply voltage (12V), as the CAN > bus has its dedicated "low" line. > > I just looked up some OBD2 sites: 4+5 normally are the same. One > page says an OBD2 cable should have identical potential on 4 and > 5 to ensure proper function. Another OBD2 cable I bought > connects them, so maybe for a general product GND should connect > both, but I don't think there's a difference on the car side... > normally. > > But I've also seen some info on non standard OBD2 plugs, also > for some GM and Opel cars, having other signals where the CAN > bus should be, so I'm also interested in your pinout, Michael J. > > Regards, > Michael > > > Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >> Michael, >> >> One question: you have GND on pin #4 (odb). I have that shown >> as chassis ground, not signal ground. Is that correct? >> >> Michael J: is that the same connector and pins as you are using >> for the Volt? >> >> Regards, Mark >> >> On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de >> <mailto:dexter@expeedo.de>> wrote: >> >>> Mark, >>> >>> great to hear about user activity :-) >>> >>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>> As OBD2 is standard incl. CAN pinout, this should be valid for >>> any OBD2 port, so could be added to the FastTech OVMS product >>> line. It's not a standard cable, or at least none I know of. >>> >>> 2) No known way up to now. I also think the Twizy would not >>> respond to the port, as the whole CAN bus is quiet when the >>> car is off and not charging. Plus, because the charger draws >>> some 30-35 W for many hours after charging has completed, many >>> drivers use auto-power-off sockets. >>> >>> 3) I'll forward your specification to the german Twizy forum. >>> >>> Regards, >>> Michael >>> >>> >>> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>>> >>>> Twizy support seems to be coming along nicely, thanks to the >>>> amazing work Michael is doing. Some good functionality there >>>> already. >>>> >>>> I'm starting to see some Twizy users register on >>>> openvehicles.com <http://openvehicles.com/>. Perhaps the word >>>> is getting out? >>>> >>>> Some questions / requests: >>>> >>>> 1. Michael: Can you let me have the details on the cable >>>> pinouts and parts you are using at the moment? Is it a >>>> standard cable, or are you having to make something up? >>>> >>>> 2. How is charge control on the Twizy done? Is there any way >>>> of stopping or starting (topup) a charge from within the >>>> car, or is it just controlled by plugging? Any chance of >>>> can bus control of this? >>>> >>>> 3. Can anyone help with the car images for the Twizy? There >>>> are lots of nice images available, but they need to be >>>> photoshopped to the right dimensions and transparent >>>> background png. >>>> >>>> >>>> Regards, Mark. >>>> >>>> >>>> >>>> _______________________________________________ >>>> OvmsDev mailing list >>>> OvmsDev@lists.teslaclub.hk >>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>> >>> -- >>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>> <dexter.vcf> >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> >> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > -- > Michael Balzer * Paradestr. 8 * D-42107 Wuppertal > Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 > <dexter.vcf> > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26
Hi, Looks Good. Right angle is ok. Length is ok too. Bye Michael Von unterwegs gesendet Am 04.12.2012 um 06:06 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing.
Based on our specification:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length.
The resulting build spec sheet is shown below.
Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts?
Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind?
We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good.
Thanks, Mark.
<PastedGraphic-4.png>
On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok.
I think Volt bus we are using is on the same pins:
http://www.evtools.info/ChevyVoltOBD2CAN.html
Maybe 1 cable can do both?
Regards, Mark
On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote:
> Mark, > > yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line. > > I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally. > > But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J. > > Regards, > Michael > > > Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >> Michael, >> >> One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? >> >> Michael J: is that the same connector and pins as you are using for the Volt? >> >> Regards, Mark >> >> On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: >> >>> Mark, >>> >>> great to hear about user activity :-) >>> >>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. >>> >>> 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. >>> >>> 3) I'll forward your specification to the german Twizy forum. >>> >>> Regards, >>> Michael >>> >>> >>> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>>> >>>> Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. >>>> >>>> I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? >>>> >>>> Some questions / requests: >>>> >>>> Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? >>>> >>>> How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? >>>> >>>> Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. >>>> >>>> Regards, Mark. >>>> >>>> >>>> >>>> _______________________________________________ >>>> OvmsDev mailing list >>>> OvmsDev@lists.teslaclub.hk >>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>> >>> -- >>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>> <dexter.vcf> >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> >> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > -- > Michael Balzer * Paradestr. 8 * D-42107 Wuppertal > Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 > <dexter.vcf> > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev _______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Michael(s), We've just ordered 100 of these (gulp). Should be done in about a week. Regards, Mark. On 5 Dec, 2012, at 6:49 AM, Michael Jochum wrote:
Hi,
Looks Good. Right angle is ok. Length is ok too.
Bye Michael
Von unterwegs gesendet
Am 04.12.2012 um 06:06 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing.
Based on our specification:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length.
The resulting build spec sheet is shown below.
Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts?
Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind?
We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good.
Thanks, Mark.
<PastedGraphic-4.png>
On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com:
Hi,
i use this pinout: Primary Data Link Connector- (DLC) X84 *Under drivers side of IP
Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused Pin 4 chassis ground (for scan tool) Pin 5 data reference ground
Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused
Pin 16 B+ (for scan tool power)
OBDII Sub-D Signal 16 9 +12V 4 6+3 GND-Chassis 6 7 CAN_H 14 2 CAN_L
I connect 6 and 3 at the Sub-D side together. So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech?
Bye Michael
Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
> Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok. > > I think Volt bus we are using is on the same pins: > > http://www.evtools.info/ChevyVoltOBD2CAN.html > > Maybe 1 cable can do both? > > Regards, Mark > > On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote: > >> Mark, >> >> yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line. >> >> I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally. >> >> But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J. >> >> Regards, >> Michael >> >> >> Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >>> Michael, >>> >>> One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? >>> >>> Michael J: is that the same connector and pins as you are using for the Volt? >>> >>> Regards, Mark >>> >>> On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: >>> >>>> Mark, >>>> >>>> great to hear about user activity :-) >>>> >>>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>>> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. >>>> >>>> 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. >>>> >>>> 3) I'll forward your specification to the german Twizy forum. >>>> >>>> Regards, >>>> Michael >>>> >>>> >>>> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>>>> >>>>> Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. >>>>> >>>>> I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? >>>>> >>>>> Some questions / requests: >>>>> >>>>> Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? >>>>> >>>>> How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? >>>>> >>>>> Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. >>>>> >>>>> Regards, Mark. >>>>> >>>>> >>>>> >>>>> _______________________________________________ >>>>> OvmsDev mailing list >>>>> OvmsDev@lists.teslaclub.hk >>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>> >>>> -- >>>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>>> <dexter.vcf> >>>> _______________________________________________ >>>> OvmsDev mailing list >>>> OvmsDev@lists.teslaclub.hk >>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>> >>> >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> >> -- >> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >> <dexter.vcf> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Mark, I just read about the CAN bus using twisted pair cables like ethernet for shielding. I don't know if the manufacturer will use twisted cables. I think 1m length untwisted should be no problem, but maybe that should be specified for the next batch, just to be on the safe side. Regards, Michael Am 05.12.2012 01:14, schrieb Mark Webb-Johnson:
Michael(s),
We've just ordered 100 of these (gulp).
Should be done in about a week.
Regards, Mark.
On 5 Dec, 2012, at 6:49 AM, Michael Jochum wrote:
Hi,
Looks Good. Right angle is ok. Length is ok too.
Bye Michael
Von unterwegs gesendet
Am 04.12.2012 um 06:06 schrieb Mark Webb-Johnson <mark@webb-johnson.net <mailto:mark@webb-johnson.net>>:
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing.
Based on our specification:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length.
The resulting build spec sheet is shown below.
Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts?
Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind?
We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good.
Thanks, Mark.
<PastedGraphic-4.png>
On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net <mailto:mark@webb-johnson.net>> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
_J1962-M__DB9-F__Signal_ 43Chassis/Power GND 67CAN-H 142CAN-L 169+12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote:
For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well.
Regards, Michael
Am 10.11.2012 19:57, schrieb mikeljo@me.com: > Hi, > > i use this pinout: > > Primary Data Link Connector- (DLC) X84 *Under drivers side of IP > > Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical > Services Only Pin 2-3 Unused > Pin 4 chassis ground (for scan tool) > Pin 5 data reference ground > > Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus > (DWCAN ~500 kbps) Pins 7-11 Unused > Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus > (DWCAN ~500 kbps) Pin 15 Unused > > Pin 16 B+ (for scan tool power) > > OBDIISub-DSignal > 169+12V > 46+3GND-Chassis > 67CAN_H > 142CAN_L > > I connect 6 and 3 at the Sub-D side together. > So it looks like we can use the same Cable (for the Primary Can > Bus in the Volt). >> Fasttech? > > Bye > Michael > > > > Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson > <mark@webb-johnson.net <mailto:mark@webb-johnson.net>>: > >> Yes, chassis GND vs signal GND, but can is differential, so no >> GND needed for the signal. We only need GND for 12V power. For >> vehicles, I think chassis GND is ok. >> >> I think Volt bus we are using is on the same pins: >> >> http://www.evtools.info/ChevyVoltOBD2CAN.html >> >> Maybe 1 cable can do both? >> >> Regards, Mark >> >> On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de >> <mailto:dexter@expeedo.de>> wrote: >> >>> Mark, >>> >>> yes, that's chassis ground -- shouldn't it be? I interpreted >>> the OVMS GND as the ground for the supply voltage (12V), as >>> the CAN bus has its dedicated "low" line. >>> >>> I just looked up some OBD2 sites: 4+5 normally are the same. >>> One page says an OBD2 cable should have identical potential on >>> 4 and 5 to ensure proper function. Another OBD2 cable I bought >>> connects them, so maybe for a general product GND should >>> connect both, but I don't think there's a difference on the >>> car side... normally. >>> >>> But I've also seen some info on non standard OBD2 plugs, also >>> for some GM and Opel cars, having other signals where the CAN >>> bus should be, so I'm also interested in your pinout, Michael J. >>> >>> Regards, >>> Michael >>> >>> >>> Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >>>> Michael, >>>> >>>> One question: you have GND on pin #4 (odb). I have that shown >>>> as chassis ground, not signal ground. Is that correct? >>>> >>>> Michael J: is that the same connector and pins as you are >>>> using for the Volt? >>>> >>>> Regards, Mark >>>> >>>> On 10 Nov, 2012, at 2:16 AM, Michael Balzer >>>> <dexter@expeedo.de <mailto:dexter@expeedo.de>> wrote: >>>> >>>>> Mark, >>>>> >>>>> great to hear about user activity :-) >>>>> >>>>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>>>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>>>> As OBD2 is standard incl. CAN pinout, this should be valid >>>>> for any OBD2 port, so could be added to the FastTech OVMS >>>>> product line. It's not a standard cable, or at least none I >>>>> know of. >>>>> >>>>> 2) No known way up to now. I also think the Twizy would not >>>>> respond to the port, as the whole CAN bus is quiet when the >>>>> car is off and not charging. Plus, because the charger draws >>>>> some 30-35 W for many hours after charging has completed, >>>>> many drivers use auto-power-off sockets. >>>>> >>>>> 3) I'll forward your specification to the german Twizy forum. >>>>> >>>>> Regards, >>>>> Michael >>>>> >>>>> >>>>> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>>>>> >>>>>> Twizy support seems to be coming along nicely, thanks to >>>>>> the amazing work Michael is doing. Some good functionality >>>>>> there already. >>>>>> >>>>>> I'm starting to see some Twizy users register on >>>>>> openvehicles.com <http://openvehicles.com/>. Perhaps the >>>>>> word is getting out? >>>>>> >>>>>> Some questions / requests: >>>>>> >>>>>> 1. Michael: Can you let me have the details on the cable >>>>>> pinouts and parts you are using at the moment? Is it a >>>>>> standard cable, or are you having to make something up? >>>>>> >>>>>> 2. How is charge control on the Twizy done? Is there any >>>>>> way of stopping or starting (topup) a charge from >>>>>> within the car, or is it just controlled by plugging? >>>>>> Any chance of can bus control of this? >>>>>> >>>>>> 3. Can anyone help with the car images for the Twizy? >>>>>> There are lots of nice images available, but they need >>>>>> to be photoshopped to the right dimensions and >>>>>> transparent background png. >>>>>> >>>>>> >>>>>> Regards, Mark. >>>>>> >>>>>> >>>>>> >>>>>> _______________________________________________ >>>>>> OvmsDev mailing list >>>>>> OvmsDev@lists.teslaclub.hk >>>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>>> >>>>> -- >>>>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>>>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>>>> <dexter.vcf> >>>>> _______________________________________________ >>>>> OvmsDev mailing list >>>>> OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> >>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>> >>>> >>>> _______________________________________________ >>>> OvmsDev mailing list >>>> OvmsDev@lists.teslaclub.hk >>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>> >>> -- >>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>> <dexter.vcf> >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > > > _______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk <mailto:OvmsDev@lists.teslaclub.hk> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26
Michael, We used to use cat5 twisted pair for the Tesla Roadster cables, but the ones generally available are solid core and we had a lot of problems with them being brittle (particularly at the point they went into the pins on the car-side connector). So, we switched to thicker cable with braided cores, and that worked out to be much more durable. The factory I accepted the bid from specializes in automotive connectors and cables - I hope they know what they are doing. Not sure if it is twisted pair, but I doubt it. Given the 1m length, and that we're not routing it in a big wiring bundle or near large sources of interference (the motor and inverter, in particular), I think we should be ok. They should complete the cables this week, so we'll know soon enough :-) Regards, Mark. On 9 Dec, 2012, at 7:27 PM, Michael Balzer wrote:
Mark,
I just read about the CAN bus using twisted pair cables like ethernet for shielding.
I don't know if the manufacturer will use twisted cables. I think 1m length untwisted should be no problem, but maybe that should be specified for the next batch, just to be on the safe side.
Regards, Michael
Am 05.12.2012 01:14, schrieb Mark Webb-Johnson:
Michael(s),
We've just ordered 100 of these (gulp).
Should be done in about a week.
Regards, Mark.
On 5 Dec, 2012, at 6:49 AM, Michael Jochum wrote:
Hi,
Looks Good. Right angle is ok. Length is ok too.
Bye Michael
Von unterwegs gesendet
Am 04.12.2012 um 06:06 schrieb Mark Webb-Johnson <mark@webb-johnson.net>:
I've found a manufacturer for the cable, that seems quite good and professional. I haven't used them before, but they come recommended. I also tendered for this, and they were not the cheapest response, but in the lowest 10%. Quality seems very good, and they specialise in manufacturing automotive cables so should know what they are doing.
Based on our specification:
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
J1962 end should be MALE plug with right angle cable. DB9 end should be FEMALE. Both ends should be enclosed in shells, and cable should be 1metre in length.
The resulting build spec sheet is shown below.
Sorry it is mostly in Chinese, but the most important points are (a) the pinouts, (b) the 1m length, (c) the use of a right-angled ODBII connector, (d) the connectors types, (e) the pinouts, and (f) did I mention the pinouts?
Could you guys check this out, and confirm it looks ok from your point of view? Something standard that the Twizy, Volt/Ampera and other users could get behind?
We are going to have to pay upfront for at least 100 of these, so need to be certain it is correct. Pricing is going to be around US$9 - US$10 per cable (including worldwide shipping), which I think is pretty good.
Thanks, Mark.
<PastedGraphic-4.png>
On 12 Nov, 2012, at 7:09 PM, Mark Webb-Johnson wrote:
I've found a couple of manufacturers willing to do this for a reasonable price (at a quantity of perhaps 50 to 100 units).
Is the specification below ok? Any problems?
Regards, Mark.
On 11 Nov, 2012, at 1:36 PM, Mark Webb-Johnson <mark@webb-johnson.net> wrote:
OK, so I think the pinouts we require are as per Michael B's diagram:
<OVMS-OBD2-cable.png>
J1962-M DB9-F Signal 4 3 Chassis/Power GND 6 7 CAN-H 14 2 CAN-L 16 9 +12V Vehicle Power
A right angle J1962-M plug and about 1metre cable should be ok.
This one cable should support both Twizy and Volt/Ampera, and also any ODBII car with an ODBII compliant CAN bus.
Does that sound ok?
I'll ask around in China to see if I can find someone to make these up cheaply, and get them on Fasttech.
Regards, Mark.
On 11 Nov, 2012, at 7:50 AM, Michael Balzer <dexter@expeedo.de> wrote:
> For the record: I now have connected GND to both 4+5 on the OBD2 plug, works as well. > > Regards, > Michael > > > Am 10.11.2012 19:57, schrieb mikeljo@me.com: >> Hi, >> >> i use this pinout: >> Primary Data Link Connector- (DLC) X84 *Under drivers side of IP >> >> Pin 1 is Low Speed GMLAN (SWCAN ~33.3kbps) - Body Electrical Services Only Pin 2-3 Unused >> Pin 4 chassis ground (for scan tool) >> Pin 5 data reference ground >> >> Pins 6(+) & 14 (-) High Speed GMLAN- Primary Powertrain Bus (DWCAN ~500 kbps) Pins 7-11 Unused >> Pins 12(+) & 13(-) High Speed GMLAN- Chassis Expansion Bus (DWCAN ~500 kbps) Pin 15 Unused >> >> Pin 16 B+ (for scan tool power) >> >> OBDII >> Sub-D >> Signal >> 16 >> 9 >> +12V >> 4 >> 6+3 >> GND-Chassis >> 6 >> 7 >> CAN_H >> 14 >> 2 >> CAN_L >> >> I connect 6 and 3 at the Sub-D side together. >> So it looks like we can use the same Cable (for the Primary Can Bus in the Volt). >> Fasttech? >> >> Bye >> Michael >> >> >> >> Am 10.11.2012 um 06:47 schrieb Mark Webb-Johnson <mark@webb-johnson.net>: >> >>> Yes, chassis GND vs signal GND, but can is differential, so no GND needed for the signal. We only need GND for 12V power. For vehicles, I think chassis GND is ok. >>> >>> I think Volt bus we are using is on the same pins: >>> >>> http://www.evtools.info/ChevyVoltOBD2CAN.html >>> >>> Maybe 1 cable can do both? >>> >>> Regards, Mark >>> >>> On 10 Nov, 2012, at 12:18 PM, Michael Balzer <dexter@expeedo.de> wrote: >>> >>>> Mark, >>>> >>>> yes, that's chassis ground -- shouldn't it be? I interpreted the OVMS GND as the ground for the supply voltage (12V), as the CAN bus has its dedicated "low" line. >>>> >>>> I just looked up some OBD2 sites: 4+5 normally are the same. One page says an OBD2 cable should have identical potential on 4 and 5 to ensure proper function. Another OBD2 cable I bought connects them, so maybe for a general product GND should connect both, but I don't think there's a difference on the car side... normally. >>>> >>>> But I've also seen some info on non standard OBD2 plugs, also for some GM and Opel cars, having other signals where the CAN bus should be, so I'm also interested in your pinout, Michael J. >>>> >>>> Regards, >>>> Michael >>>> >>>> >>>> Am 10.11.2012 04:23, schrieb Mark Webb-Johnson: >>>>> Michael, >>>>> >>>>> One question: you have GND on pin #4 (odb). I have that shown as chassis ground, not signal ground. Is that correct? >>>>> >>>>> Michael J: is that the same connector and pins as you are using for the Volt? >>>>> >>>>> Regards, Mark >>>>> >>>>> On 10 Nov, 2012, at 2:16 AM, Michael Balzer <dexter@expeedo.de> wrote: >>>>> >>>>>> Mark, >>>>>> >>>>>> great to hear about user activity :-) >>>>>> >>>>>> 1) I just created an OVMS to OBD2 cable image and checked it in: >>>>>> https://github.com/dexterbg/Open-Vehicle-Monitoring-System/commit/a7c3a3e8f1... >>>>>> As OBD2 is standard incl. CAN pinout, this should be valid for any OBD2 port, so could be added to the FastTech OVMS product line. It's not a standard cable, or at least none I know of. >>>>>> >>>>>> 2) No known way up to now. I also think the Twizy would not respond to the port, as the whole CAN bus is quiet when the car is off and not charging. Plus, because the charger draws some 30-35 W for many hours after charging has completed, many drivers use auto-power-off sockets. >>>>>> >>>>>> 3) I'll forward your specification to the german Twizy forum. >>>>>> >>>>>> Regards, >>>>>> Michael >>>>>> >>>>>> >>>>>> Am 09.11.2012 15:23, schrieb Mark Webb-Johnson: >>>>>>> >>>>>>> Twizy support seems to be coming along nicely, thanks to the amazing work Michael is doing. Some good functionality there already. >>>>>>> >>>>>>> I'm starting to see some Twizy users register on openvehicles.com. Perhaps the word is getting out? >>>>>>> >>>>>>> Some questions / requests: >>>>>>> >>>>>>> Michael: Can you let me have the details on the cable pinouts and parts you are using at the moment? Is it a standard cable, or are you having to make something up? >>>>>>> >>>>>>> How is charge control on the Twizy done? Is there any way of stopping or starting (topup) a charge from within the car, or is it just controlled by plugging? Any chance of can bus control of this? >>>>>>> >>>>>>> Can anyone help with the car images for the Twizy? There are lots of nice images available, but they need to be photoshopped to the right dimensions and transparent background png. >>>>>>> >>>>>>> Regards, Mark. >>>>>>> >>>>>>> >>>>>>> >>>>>>> _______________________________________________ >>>>>>> OvmsDev mailing list >>>>>>> OvmsDev@lists.teslaclub.hk >>>>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>>>> >>>>>> -- >>>>>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>>>>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>>>>> <dexter.vcf> >>>>>> _______________________________________________ >>>>>> OvmsDev mailing list >>>>>> OvmsDev@lists.teslaclub.hk >>>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>>> >>>>> >>>>> _______________________________________________ >>>>> OvmsDev mailing list >>>>> OvmsDev@lists.teslaclub.hk >>>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>>> >>>> -- >>>> Michael Balzer * Paradestr. 8 * D-42107 Wuppertal >>>> Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 >>>> <dexter.vcf> >>>> _______________________________________________ >>>> OvmsDev mailing list >>>> OvmsDev@lists.teslaclub.hk >>>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >>> _______________________________________________ >>> OvmsDev mailing list >>> OvmsDev@lists.teslaclub.hk >>> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev >> >> >> >> _______________________________________________ >> OvmsDev mailing list >> OvmsDev@lists.teslaclub.hk >> http://lists.teslaclub.hk/mailman/listinfo/ovmsdev > > -- > Michael Balzer * Paradestr. 8 * D-42107 Wuppertal > Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 > <dexter.vcf>_______________________________________________ > OvmsDev mailing list > OvmsDev@lists.teslaclub.hk > http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
-- Michael Balzer * Paradestr. 8 * D-42107 Wuppertal Fon 0202 / 272 2201 * Handy 0176 / 206 989 26 <dexter.vcf>_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
participants (5)
-
HONDA S-2000 -
Mark Webb-Johnson -
Michael Balzer -
Michael Jochum -
mikeljo@me.com
