OVMS v3.0 modem active antenna modification:

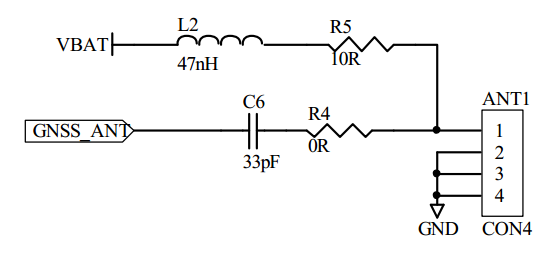

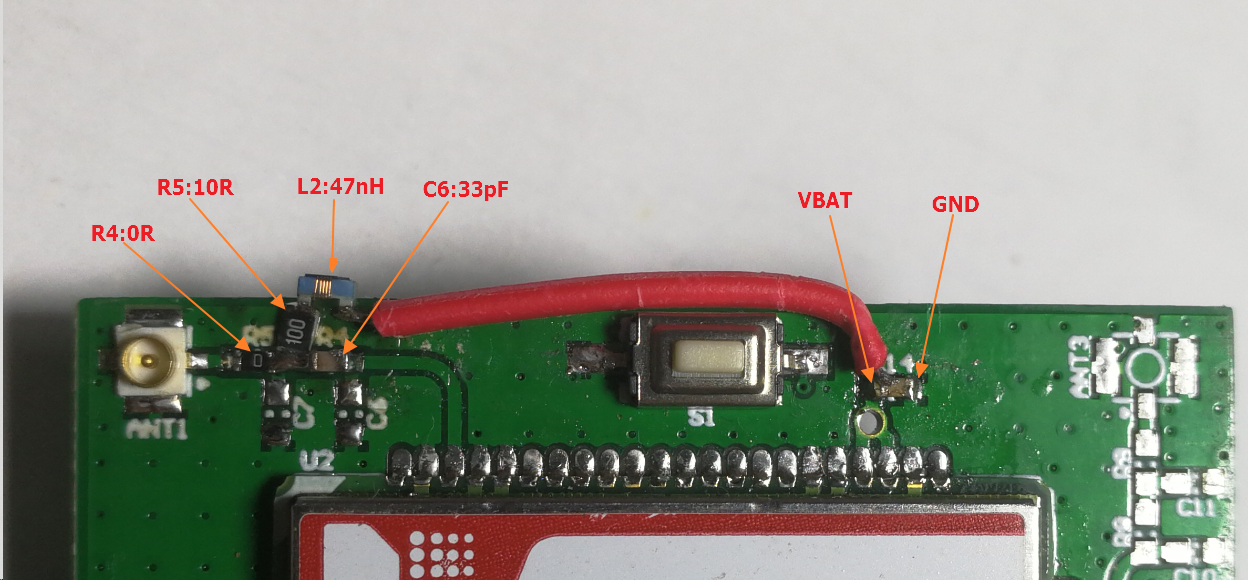

Here is the modification for active GPS antenna on OVMS v3.0 modems. I’m having a bunch made up pre-soldered and pre-tinned, so just need to be soldered at two points. I will send those out by post when I get them. Regards, Mark.
On 12/01/18 15:35, Mark Webb-Johnson wrote:
Here is the modification for active GPS antenna on OVMS v3.0 modems.
I’m having a bunch made up pre-soldered and pre-tinned, so just need to be soldered at two points. I will send those out by post when I get them.
Nice! Would it be too much to ask for a case, if you have those? If not I can 3d print one when you get round to publishing the STL. Thank you for all the work you're doing!
I’ve asked. Not sure if they are ready yet, but I’ll know next week. Regards, Mark.
On 19 Jan 2018, at 6:16 PM, Tom Parker <tom@carrott.org> wrote:
On 12/01/18 15:35, Mark Webb-Johnson wrote:
Here is the modification for active GPS antenna on OVMS v3.0 modems.
I’m having a bunch made up pre-soldered and pre-tinned, so just need to be soldered at two points. I will send those out by post when I get them.
Nice!
Would it be too much to ask for a case, if you have those? If not I can 3d print one when you get round to publishing the STL.
Thank you for all the work you're doing!
