Hi all, Master doesn't compile with the default sdkconfig when you answer no to all the questions: /vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp: In member function 'void OvmsOTA::AutoFlashSD(std::__cxx11::string, void*)': /vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp:432:18: error: 'class Peripherals' has no member named 'm_sdcard' If you add in CONFIG_OVMS_COMP_SDCARD=y then it compiles. There is a buffer overflow in the v2 command handling because we call strncpy with the length of the string not the (larger) length of the receiving buffer and so the null terminator is not copied. Later we read beyond the copied buffer because there is no null terminator. This often crashes the android client as it's not expecting junk data after the reply. The following encryption code doesn't include the null terminator either but I think that might be ok? I've sent a pull request to fix the strncpy. I've found the SIMCOM modem is very unstable when connected to my laptop via an unpowered USB hub. I see under-voltage warnings so I wonder if there isn't enough power? It seems stable when connected directly to my laptop. When it the modem reboots, the esp32 crashes too. I'm not sure if this is because it also ran out of power or because it is sad the network went away: (77496) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4c 1c 00 00 K.........&.L... D (77506) SIMCOM ppp rx: 19 ac 50 18 39 08 05 3c 00 00 6d 2f 47 45 71 44 ..P.9..<..m/GEqD D (77506) SIMCOM ppp rx: 78 41 78 51 3d 3d 0d 0a d6 17 7e xAxQ==....~ I (77536) ovms-server-v2: Incoming Msg: MP-0 Z2 I (77536) ovms-server-v2: One or more peers have connected I (77536) ovms-server-v2: Send MP-0 S0,K,0,0,stopped,standard,0,0,0,0,0,0,0,21,0,0,0,0,0.00,0,0,0,0,-1,0,0,0,0,0,0,0,0.00,0.00,0 I (77546) ovms-server-v2: Send MP-0 D64,0,5,0,0,0,0,0,0,77,0,0,0,0,0.967033,0,0,0,0,0 I (77556) ovms-server-v2: Send MP-0 L0,0,0,0,0,0,0,0,0,0,0 I (77566) ovms-server-v2: Send MP-0 W0,0,0,0,0,0,0,0,0 I (77576) ovms-server-v2: Send MP-0 F3.0.0/factory/main build (idf v2.1-20-g88ab5d4) Dec 16 2017 09:23:50,,12,1,NL,VodafoneNZ Hologram D (77936) SIMCOM rx: f9 0d ff 4b 0d 0a 55 4e 44 45 52 2d 56 4f 4c 54 ...K..UNDER-VOLT D (77936) SIMCOM rx: 41 47 45 20 57 41 52 4e 4e 49 4e 47 20 50 4f 57 AGE WARNNING POW D (77946) SIMCOM rx: 45 52 20 44 4f 57 4e 0d 0a 9b f9 f9 11 ff 4b 0d ER DOWN.......K. D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=9b, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 0a 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 .UNDER-VOLTAGE W D (77946) SIMCOM rx: 41 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f ARNNING POWER DO D (77946) SIMCOM rx: 57 4e 0d 0a 96 f9 f9 0d ff 45 0d 0a 73 74 61 72 WN.......E..star D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=96, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 74 69 6e 67 20 70 6f 77 65 72 20 6f 66 66 20 74 ting power off t D (77946) SIMCOM rx: 68 65 20 6d 6f 64 75 6c 65 21 0d 0a 71 f9 f9 11 he module!..q... D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=71, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (77946) SIMCOM rx: ff 45 0d 0a 73 74 61 72 74 69 6e 67 20 70 6f 77 .E..starting pow D (77946) SIMCOM rx: 65 72 20 6f 66 66 20 74 68 65 20 6d 6f 64 75 6c er off the modul D (77946) SIMCOM rx: 65 21 0d 0a 7c f9 e!..|. D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=7c, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (78216) SIMCOM ppp tx: 7e ff 03 80 57 01 01 00 0e 01 0a 85 b9 57 2f be ~...W........W/. D (78216) SIMCOM ppp tx: 63 a0 85 80 17 7e c....~ D (78216) SIMCOM tx: f9 09 ff 2d 7e ff 03 80 57 01 01 00 0e 01 0a 85 ...-~...W....... D (78216) SIMCOM tx: b9 57 2f be 63 a0 85 80 17 7e f5 f9 .W/.c....~.. D (78566) SIMCOM rx: f9 09 ff cb 7e 21 45 00 00 60 92 81 40 00 2d 06 ....~!E..`..@.-. D (78566) SIMCOM rx: e0 ed bc 8a 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 ....K.........&. D (78566) SIMCOM rx: 4b e4 00 00 19 ac 50 18 39 08 79 ae 00 00 4d 50 K.....P.9.y...MP D (78576) SIMCOM rx: 2d 53 20 30 20 6a 79 30 32 65 51 6b 7a 55 52 4d -S 0 jy02eQkzURM D (78576) SIMCOM rx: 70 73 49 41 36 56 59 48 6e 39 59 20 58 72 5a 6b psIA6VYHn9Y XrZk D (78576) SIMCOM rx: 64 71 48 7a 54 38 6a 77 74 44 47 46 66 6a 52 73 dqHzT8jwtDGFfjRs D (78576) SIMCOM rx: 79 77 3d 3d 0d 0a 58 bf 7e b9 f9 yw==..X.~.. D (78576) gsm-mux: ProcessFrame(CHAN=2, ADDR=09, CTRL=ff, FCS=b9, LEN=107) D (78576) gsm-mux: ChanProcessFrame(CHAN=2, ADDR=09, CTRL=ff, LEN=104, IFP=3) D (78576) SIMCOM ppp rx: 7e 21 45 00 00 60 92 81 40 00 2d 06 e0 ed bc 8a ~!E..`..@.-..... D (78576) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4b e4 00 00 K.........&.K... D (78586) SIMCOM ppp rx: 19 ac 50 18 39 08 79 ae 00 00 4d 50 2d 53 20 30 ..P.9.y...MP-S 0 D (78586) SIMCOM ppp rx: 20 6a 79 30 32 65 51 6b 7a 55 52 4d 70 73 49 41 jy02eQkzURMpsIA D (78586) SIMCOM ppp rx: 36 56 59 48 6e 39 59 20 58 72 5a 6b 64 71 48 7a 6VYHn9Y XrZkdqHz D (78586) SIMCOM ppp rx: 54 38 6a 77 74 44 47 46 66 6a 52 73 79 77 3d 3d T8jwtDGFfjRsyw== D (78596) SIMCOM ppp rx: 0d 0a 58 bf 7e ..X.~ D (78596) SIMCOM ppp tx: 7e 21 45 00 00 28 00 08 00 00 ff 06 e1 9e 0a aa ~!E..(.......... D (78596) SIMCOM ppp tx: c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 1a 32 26 03 ....K........2&. D (78596) SIMCOM ppp tx: 4c 2a 50 10 16 8a 87 cf 00 00 22 59 7e L*P......."Y~ D (78596) SIMCOM tx: f9 09 ff 5b 7e 21 45 00 00 28 00 08 00 00 ff 06 ...[~!E..(...... D (78596) SIMCOM tx: e1 9e 0a aa c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 ........K....... D (78596) SIMCOM tx: 1a 32 26 03 4c 2a 50 10 16 8a 87 cf 00 00 22 59 .2&.L*P......."Y D (78596) SIMCOM tx: 7e 45 f9 ~E. D (78986) SIMCOM rx: f9 09 ff 23 7e ff 7d 23 c0 21 7d 25 7d 23 7d 20 ...#~.}#.!}%}#} D (78986) SIMCOM rx: 7d 24 85 72 7e 1f f9 f9 0d ff 2f 0d 0a 2b 50 50 }$.r~...../..+PP D (78986) gsm-mux: ProGuru Meditation Error of type LoadProhibited occurred on core 1. Exception was unhandled. Register dump: PC : 0x4017fd75 PS : 0x00060b30 A0 : 0x8017fdb6 A1 : 0x3ffcf030 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2) A2 : 0x0000f01d A3 : 0x00000000 A4 : 0x3ffeb04c A5 : 0x3f429a88 A6 : 0x00000008 A7 : 0x3ffcf258 A8 : 0x8017fd69 A9 : 0x3ffcf010 A10 : 0x00000000 A11 : 0x00000000 A12 : 0x3ffdcd3c A13 : 0x3ffcf240 A14 : 0x00000004 A15 : 0xab9423a7 SAR : 0x00000018 EXCCAUSE: 0x0000001c EXCVADDR: 0x0000f0d2 LBEG : 0x4000c349 LEND : 0x4000c36b LCOUNT : 0x00000000 Backtrace: 0x4017fd75:0x3ffcf030 0x4017fdb3:0x3ffcf050 0x4017dfa2:0x3ffcf070 0x40178617:0x3ffcf0b0 0x40178639:0x3ffcf0e0 0x401786da:0x3ffcf100 0x40178b38:0x3ffcf120 0x4017c272:0x3ffcf140 0x4017c2b3:0x3ffcf160 0x40184cdd:0x3ffcf180 0x401850a1:0x3ffcf1a0 0x401850e8:0x3ffcf1c0 0x401894f9:0x3ffcf1e0 0x40184fd8:0x3ffcf200 0x4018c9ce:0x3ffcf220 0x4018ca0a:0x3ffcf240 0x401880dd:0x3ffcf260 0x40189b19:0x3ffcf280 0x40189bc4:0x3ffcf2a0 0x40187eff:0x3ffcf2c0 0x40184b05:0x3ffcf2e0 0x401a2be8:0x3ffcf310 0x401a2d35:0x3ffcf330 0x401731c9:0x3ffcf350 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2) 0x4017fdb3: ip4_route_src at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:159 0x4017dfa2: tcp_rst at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp_out.c:1336 (discriminator 4) 0x40178617: tcp_abandon at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630 0x40178639: tcp_abort at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630 0x401786da: tcp_netif_ipv4_addr_changed_pcblist at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630 0x40178b38: tcp_netif_ipv4_addr_changed at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1947 0x4017c272: netif_set_ipaddr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:452 0x4017c2b3: netif_set_addr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:330 0x40184cdd: cifaddr at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704 0x401850a1: ipcp_clear_addrs at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2192 0x401850e8: ipcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2156 0x401894f9: fsm_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:146 0x40184fd8: ipcp_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:687 0x4018c9ce: upper_layers_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:715 0x4018ca0a: link_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:701 0x401880dd: lcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:2341 0x40189b19: fsm_rtermreq at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:597 0x40189bc4: fsm_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:369 0x40187eff: lcp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:513 0x40184b05: ppp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704 0x401a2be8: pppos_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:578 0x401a2d35: pppos_input_sys at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:460 (discriminator 3) 0x401731c9: tcpip_thread at /home/ubuntu/esp/esp-idf/components/lwip/api/tcpip.c:474 Rebooting... ets Jun 8 2016 00:22:57
I too have started to see these under-voltage warnings. I’m wondering if it is something to do with the work we recently did to enable GPS. It doesn’t seem to be a problem with powered HUBs or high power boards, so is most likely an actual low voltage condition. Regards, Mark.
On 16 Dec 2017, at 5:59 PM, Tom Parker <tom@carrott.org> wrote:
Hi all,
Master doesn't compile with the default sdkconfig when you answer no to all the questions:
/vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp: In member function 'void OvmsOTA::AutoFlashSD(std::__cxx11::string, void*)': /vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp:432:18: error: 'class Peripherals' has no member named 'm_sdcard'
If you add in CONFIG_OVMS_COMP_SDCARD=y then it compiles.
There is a buffer overflow in the v2 command handling because we call strncpy with the length of the string not the (larger) length of the receiving buffer and so the null terminator is not copied. Later we read beyond the copied buffer because there is no null terminator. This often crashes the android client as it's not expecting junk data after the reply. The following encryption code doesn't include the null terminator either but I think that might be ok?
I've sent a pull request to fix the strncpy.
I've found the SIMCOM modem is very unstable when connected to my laptop via an unpowered USB hub. I see under-voltage warnings so I wonder if there isn't enough power? It seems stable when connected directly to my laptop. When it the modem reboots, the esp32 crashes too. I'm not sure if this is because it also ran out of power or because it is sad the network went away:
(77496) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4c 1c 00 00 K.........&.L... D (77506) SIMCOM ppp rx: 19 ac 50 18 39 08 05 3c 00 00 6d 2f 47 45 71 44 ..P.9..<..m/GEqD D (77506) SIMCOM ppp rx: 78 41 78 51 3d 3d 0d 0a d6 17 7e xAxQ==....~ I (77536) ovms-server-v2: Incoming Msg: MP-0 Z2 I (77536) ovms-server-v2: One or more peers have connected I (77536) ovms-server-v2: Send MP-0 S0,K,0,0,stopped,standard,0,0,0,0,0,0,0,21,0,0,0,0,0.00,0,0,0,0,-1,0,0,0,0,0,0,0,0.00,0.00,0 I (77546) ovms-server-v2: Send MP-0 D64,0,5,0,0,0,0,0,0,77,0,0,0,0,0.967033,0,0,0,0,0 I (77556) ovms-server-v2: Send MP-0 L0,0,0,0,0,0,0,0,0,0,0 I (77566) ovms-server-v2: Send MP-0 W0,0,0,0,0,0,0,0,0 I (77576) ovms-server-v2: Send MP-0 F3.0.0/factory/main build (idf v2.1-20-g88ab5d4) Dec 16 2017 09:23:50,,12,1,NL,VodafoneNZ Hologram D (77936) SIMCOM rx: f9 0d ff 4b 0d 0a 55 4e 44 45 52 2d 56 4f 4c 54 ...K..UNDER-VOLT D (77936) SIMCOM rx: 41 47 45 20 57 41 52 4e 4e 49 4e 47 20 50 4f 57 AGE WARNNING POW D (77946) SIMCOM rx: 45 52 20 44 4f 57 4e 0d 0a 9b f9 f9 11 ff 4b 0d ER DOWN.......K. D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=9b, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 0a 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 .UNDER-VOLTAGE W D (77946) SIMCOM rx: 41 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f ARNNING POWER DO D (77946) SIMCOM rx: 57 4e 0d 0a 96 f9 f9 0d ff 45 0d 0a 73 74 61 72 WN.......E..star D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=96, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 74 69 6e 67 20 70 6f 77 65 72 20 6f 66 66 20 74 ting power off t D (77946) SIMCOM rx: 68 65 20 6d 6f 64 75 6c 65 21 0d 0a 71 f9 f9 11 he module!..q... D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=71, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (77946) SIMCOM rx: ff 45 0d 0a 73 74 61 72 74 69 6e 67 20 70 6f 77 .E..starting pow D (77946) SIMCOM rx: 65 72 20 6f 66 66 20 74 68 65 20 6d 6f 64 75 6c er off the modul D (77946) SIMCOM rx: 65 21 0d 0a 7c f9 e!..|. D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=7c, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (78216) SIMCOM ppp tx: 7e ff 03 80 57 01 01 00 0e 01 0a 85 b9 57 2f be ~...W........W/. D (78216) SIMCOM ppp tx: 63 a0 85 80 17 7e c....~ D (78216) SIMCOM tx: f9 09 ff 2d 7e ff 03 80 57 01 01 00 0e 01 0a 85 ...-~...W....... D (78216) SIMCOM tx: b9 57 2f be 63 a0 85 80 17 7e f5 f9 .W/.c....~.. D (78566) SIMCOM rx: f9 09 ff cb 7e 21 45 00 00 60 92 81 40 00 2d 06 ....~!E..`..@.-. D (78566) SIMCOM rx: e0 ed bc 8a 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 ....K.........&. D (78566) SIMCOM rx: 4b e4 00 00 19 ac 50 18 39 08 79 ae 00 00 4d 50 K.....P.9.y...MP D (78576) SIMCOM rx: 2d 53 20 30 20 6a 79 30 32 65 51 6b 7a 55 52 4d -S 0 jy02eQkzURM D (78576) SIMCOM rx: 70 73 49 41 36 56 59 48 6e 39 59 20 58 72 5a 6b psIA6VYHn9Y XrZk D (78576) SIMCOM rx: 64 71 48 7a 54 38 6a 77 74 44 47 46 66 6a 52 73 dqHzT8jwtDGFfjRs D (78576) SIMCOM rx: 79 77 3d 3d 0d 0a 58 bf 7e b9 f9 yw==..X.~.. D (78576) gsm-mux: ProcessFrame(CHAN=2, ADDR=09, CTRL=ff, FCS=b9, LEN=107) D (78576) gsm-mux: ChanProcessFrame(CHAN=2, ADDR=09, CTRL=ff, LEN=104, IFP=3) D (78576) SIMCOM ppp rx: 7e 21 45 00 00 60 92 81 40 00 2d 06 e0 ed bc 8a ~!E..`..@.-..... D (78576) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4b e4 00 00 K.........&.K... D (78586) SIMCOM ppp rx: 19 ac 50 18 39 08 79 ae 00 00 4d 50 2d 53 20 30 ..P.9.y...MP-S 0 D (78586) SIMCOM ppp rx: 20 6a 79 30 32 65 51 6b 7a 55 52 4d 70 73 49 41 jy02eQkzURMpsIA D (78586) SIMCOM ppp rx: 36 56 59 48 6e 39 59 20 58 72 5a 6b 64 71 48 7a 6VYHn9Y XrZkdqHz D (78586) SIMCOM ppp rx: 54 38 6a 77 74 44 47 46 66 6a 52 73 79 77 3d 3d T8jwtDGFfjRsyw== D (78596) SIMCOM ppp rx: 0d 0a 58 bf 7e ..X.~ D (78596) SIMCOM ppp tx: 7e 21 45 00 00 28 00 08 00 00 ff 06 e1 9e 0a aa ~!E..(.......... D (78596) SIMCOM ppp tx: c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 1a 32 26 03 ....K........2&. D (78596) SIMCOM ppp tx: 4c 2a 50 10 16 8a 87 cf 00 00 22 59 7e L*P......."Y~ D (78596) SIMCOM tx: f9 09 ff 5b 7e 21 45 00 00 28 00 08 00 00 ff 06 ...[~!E..(...... D (78596) SIMCOM tx: e1 9e 0a aa c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 ........K....... D (78596) SIMCOM tx: 1a 32 26 03 4c 2a 50 10 16 8a 87 cf 00 00 22 59 .2&.L*P......."Y D (78596) SIMCOM tx: 7e 45 f9 ~E. D (78986) SIMCOM rx: f9 09 ff 23 7e ff 7d 23 c0 21 7d 25 7d 23 7d 20 ...#~.}#.!}%}#} D (78986) SIMCOM rx: 7d 24 85 72 7e 1f f9 f9 0d ff 2f 0d 0a 2b 50 50 }$.r~...../..+PP D (78986) gsm-mux: ProGuru Meditation Error of type LoadProhibited occurred on core 1. Exception was unhandled. Register dump: PC : 0x4017fd75 PS : 0x00060b30 A0 : 0x8017fdb6 A1 : 0x3ffcf030 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2)
A2 : 0x0000f01d A3 : 0x00000000 A4 : 0x3ffeb04c A5 : 0x3f429a88 A6 : 0x00000008 A7 : 0x3ffcf258 A8 : 0x8017fd69 A9 : 0x3ffcf010 A10 : 0x00000000 A11 : 0x00000000 A12 : 0x3ffdcd3c A13 : 0x3ffcf240 A14 : 0x00000004 A15 : 0xab9423a7 SAR : 0x00000018 EXCCAUSE: 0x0000001c EXCVADDR: 0x0000f0d2 LBEG : 0x4000c349 LEND : 0x4000c36b LCOUNT : 0x00000000
Backtrace: 0x4017fd75:0x3ffcf030 0x4017fdb3:0x3ffcf050 0x4017dfa2:0x3ffcf070 0x40178617:0x3ffcf0b0 0x40178639:0x3ffcf0e0 0x401786da:0x3ffcf100 0x40178b38:0x3ffcf120 0x4017c272:0x3ffcf140 0x4017c2b3:0x3ffcf160 0x40184cdd:0x3ffcf180 0x401850a1:0x3ffcf1a0 0x401850e8:0x3ffcf1c0 0x401894f9:0x3ffcf1e0 0x40184fd8:0x3ffcf200 0x4018c9ce:0x3ffcf220 0x4018ca0a:0x3ffcf240 0x401880dd:0x3ffcf260 0x40189b19:0x3ffcf280 0x40189bc4:0x3ffcf2a0 0x40187eff:0x3ffcf2c0 0x40184b05:0x3ffcf2e0 0x401a2be8:0x3ffcf310 0x401a2d35:0x3ffcf330 0x401731c9:0x3ffcf350 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2)
0x4017fdb3: ip4_route_src at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:159
0x4017dfa2: tcp_rst at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp_out.c:1336 (discriminator 4)
0x40178617: tcp_abandon at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x40178639: tcp_abort at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x401786da: tcp_netif_ipv4_addr_changed_pcblist at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x40178b38: tcp_netif_ipv4_addr_changed at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1947
0x4017c272: netif_set_ipaddr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:452
0x4017c2b3: netif_set_addr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:330
0x40184cdd: cifaddr at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704
0x401850a1: ipcp_clear_addrs at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2192
0x401850e8: ipcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2156
0x401894f9: fsm_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:146
0x40184fd8: ipcp_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:687
0x4018c9ce: upper_layers_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:715
0x4018ca0a: link_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:701
0x401880dd: lcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:2341
0x40189b19: fsm_rtermreq at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:597
0x40189bc4: fsm_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:369
0x40187eff: lcp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:513
0x40184b05: ppp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704
0x401a2be8: pppos_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:578
0x401a2d35: pppos_input_sys at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:460 (discriminator 3)
0x401731c9: tcpip_thread at /home/ubuntu/esp/esp-idf/components/lwip/api/tcpip.c:474
Rebooting... ets Jun 8 2016 00:22:57
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
Random data points... Powering the module from the high power USB port (the one with the lightning bolt next to the USB symbol) is rock solid. GSM connection is 2 "bars", as displayed by Android app. Doesn't matter if WiFi is on or off; nicely stable. I just have a ham radio HT antenna screwed into the GSM port (well, it was handy, and I don't have a real GSM antenna). If I power the module from my Raspberry Pi 2 (with USB high power enabled), the module overall is stable (doesn't crash), but the modem never makes it up - the power on message pair just repeat every few seconds. WiFi works, however. Greg Mark Webb-Johnson wrote:
I too have started to see these under-voltage warnings. I’m wondering if it is something to do with the work we recently did to enable GPS. It doesn’t seem to be a problem with powered HUBs or high power boards, so is most likely an actual low voltage condition.
Regards, Mark.
On 16 Dec 2017, at 5:59 PM, Tom Parker <tom@carrott.org> wrote:
Hi all,
Master doesn't compile with the default sdkconfig when you answer no to all the questions:
/vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp: In member function 'void OvmsOTA::AutoFlashSD(std::__cxx11::string, void*)': /vagrant/Open-Vehicle-Monitoring-System-3/vehicle/OVMS.V3/main/./ovms_ota.cpp:432:18: error: 'class Peripherals' has no member named 'm_sdcard'
If you add in CONFIG_OVMS_COMP_SDCARD=y then it compiles.
There is a buffer overflow in the v2 command handling because we call strncpy with the length of the string not the (larger) length of the receiving buffer and so the null terminator is not copied. Later we read beyond the copied buffer because there is no null terminator. This often crashes the android client as it's not expecting junk data after the reply. The following encryption code doesn't include the null terminator either but I think that might be ok?
I've sent a pull request to fix the strncpy.
I've found the SIMCOM modem is very unstable when connected to my laptop via an unpowered USB hub. I see under-voltage warnings so I wonder if there isn't enough power? It seems stable when connected directly to my laptop. When it the modem reboots, the esp32 crashes too. I'm not sure if this is because it also ran out of power or because it is sad the network went away:
(77496) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4c 1c 00 00 K.........&.L... D (77506) SIMCOM ppp rx: 19 ac 50 18 39 08 05 3c 00 00 6d 2f 47 45 71 44 ..P.9..<..m/GEqD D (77506) SIMCOM ppp rx: 78 41 78 51 3d 3d 0d 0a d6 17 7e xAxQ==....~ I (77536) ovms-server-v2: Incoming Msg: MP-0 Z2 I (77536) ovms-server-v2: One or more peers have connected I (77536) ovms-server-v2: Send MP-0 S0,K,0,0,stopped,standard,0,0,0,0,0,0,0,21,0,0,0,0,0.00,0,0,0,0,-1,0,0,0,0,0,0,0,0.00,0.00,0 I (77546) ovms-server-v2: Send MP-0 D64,0,5,0,0,0,0,0,0,77,0,0,0,0,0.967033,0,0,0,0,0 I (77556) ovms-server-v2: Send MP-0 L0,0,0,0,0,0,0,0,0,0,0 I (77566) ovms-server-v2: Send MP-0 W0,0,0,0,0,0,0,0,0 I (77576) ovms-server-v2: Send MP-0 F3.0.0/factory/main build (idf v2.1-20-g88ab5d4) Dec 16 2017 09:23:50,,12,1,NL,VodafoneNZ Hologram D (77936) SIMCOM rx: f9 0d ff 4b 0d 0a 55 4e 44 45 52 2d 56 4f 4c 54 ...K..UNDER-VOLT D (77936) SIMCOM rx: 41 47 45 20 57 41 52 4e 4e 49 4e 47 20 50 4f 57 AGE WARNNING POW D (77946) SIMCOM rx: 45 52 20 44 4f 57 4e 0d 0a 9b f9 f9 11 ff 4b 0d ER DOWN.......K. D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=9b, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 0a 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 .UNDER-VOLTAGE W D (77946) SIMCOM rx: 41 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f ARNNING POWER DO D (77946) SIMCOM rx: 57 4e 0d 0a 96 f9 f9 0d ff 45 0d 0a 73 74 61 72 WN.......E..star D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=96, LEN=43) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=40, IFP=3) D (77946) SIMCOM line: 55 4e 44 45 52 2d 56 4f 4c 54 41 47 45 20 57 41 UNDER-VOLTAGE WA D (77946) SIMCOM line: 52 4e 4e 49 4e 47 20 50 4f 57 45 52 20 44 4f 57 RNNING POWER DOW D (77946) SIMCOM line: 4e N D (77946) SIMCOM rx: 74 69 6e 67 20 70 6f 77 65 72 20 6f 66 66 20 74 ting power off t D (77946) SIMCOM rx: 68 65 20 6d 6f 64 75 6c 65 21 0d 0a 71 f9 f9 11 he module!..q... D (77946) gsm-mux: ProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, FCS=71, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=3, ADDR=0d, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (77946) SIMCOM rx: ff 45 0d 0a 73 74 61 72 74 69 6e 67 20 70 6f 77 .E..starting pow D (77946) SIMCOM rx: 65 72 20 6f 66 66 20 74 68 65 20 6d 6f 64 75 6c er off the modul D (77946) SIMCOM rx: 65 21 0d 0a 7c f9 e!..|. D (77946) gsm-mux: ProcessFrame(CHAN=4, ADDR=11, CTRL=ff, FCS=7c, LEN=40) D (77946) gsm-mux: ChanProcessFrame(CHAN=4, ADDR=11, CTRL=ff, LEN=37, IFP=3) D (77946) SIMCOM line: 73 74 61 72 74 69 6e 67 20 70 6f 77 65 72 20 6f starting power o D (77946) SIMCOM line: 66 66 20 74 68 65 20 6d 6f 64 75 6c 65 21 ff the module! D (78216) SIMCOM ppp tx: 7e ff 03 80 57 01 01 00 0e 01 0a 85 b9 57 2f be ~...W........W/. D (78216) SIMCOM ppp tx: 63 a0 85 80 17 7e c....~ D (78216) SIMCOM tx: f9 09 ff 2d 7e ff 03 80 57 01 01 00 0e 01 0a 85 ...-~...W....... D (78216) SIMCOM tx: b9 57 2f be 63 a0 85 80 17 7e f5 f9 .W/.c....~.. D (78566) SIMCOM rx: f9 09 ff cb 7e 21 45 00 00 60 92 81 40 00 2d 06 ....~!E..`..@.-. D (78566) SIMCOM rx: e0 ed bc 8a 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 ....K.........&. D (78566) SIMCOM rx: 4b e4 00 00 19 ac 50 18 39 08 79 ae 00 00 4d 50 K.....P.9.y...MP D (78576) SIMCOM rx: 2d 53 20 30 20 6a 79 30 32 65 51 6b 7a 55 52 4d -S 0 jy02eQkzURM D (78576) SIMCOM rx: 70 73 49 41 36 56 59 48 6e 39 59 20 58 72 5a 6b psIA6VYHn9Y XrZk D (78576) SIMCOM rx: 64 71 48 7a 54 38 6a 77 74 44 47 46 66 6a 52 73 dqHzT8jwtDGFfjRs D (78576) SIMCOM rx: 79 77 3d 3d 0d 0a 58 bf 7e b9 f9 yw==..X.~.. D (78576) gsm-mux: ProcessFrame(CHAN=2, ADDR=09, CTRL=ff, FCS=b9, LEN=107) D (78576) gsm-mux: ChanProcessFrame(CHAN=2, ADDR=09, CTRL=ff, LEN=104, IFP=3) D (78576) SIMCOM ppp rx: 7e 21 45 00 00 60 92 81 40 00 2d 06 e0 ed bc 8a ~!E..`..@.-..... D (78576) SIMCOM ppp rx: 4b e5 0a aa c7 0f 1a d3 90 1f 26 03 4b e4 00 00 K.........&.K... D (78586) SIMCOM ppp rx: 19 ac 50 18 39 08 79 ae 00 00 4d 50 2d 53 20 30 ..P.9.y...MP-S 0 D (78586) SIMCOM ppp rx: 20 6a 79 30 32 65 51 6b 7a 55 52 4d 70 73 49 41 jy02eQkzURMpsIA D (78586) SIMCOM ppp rx: 36 56 59 48 6e 39 59 20 58 72 5a 6b 64 71 48 7a 6VYHn9Y XrZkdqHz D (78586) SIMCOM ppp rx: 54 38 6a 77 74 44 47 46 66 6a 52 73 79 77 3d 3d T8jwtDGFfjRsyw== D (78596) SIMCOM ppp rx: 0d 0a 58 bf 7e ..X.~ D (78596) SIMCOM ppp tx: 7e 21 45 00 00 28 00 08 00 00 ff 06 e1 9e 0a aa ~!E..(.......... D (78596) SIMCOM ppp tx: c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 1a 32 26 03 ....K........2&. D (78596) SIMCOM ppp tx: 4c 2a 50 10 16 8a 87 cf 00 00 22 59 7e L*P......."Y~ D (78596) SIMCOM tx: f9 09 ff 5b 7e 21 45 00 00 28 00 08 00 00 ff 06 ...[~!E..(...... D (78596) SIMCOM tx: e1 9e 0a aa c7 0f bc 8a 4b e5 90 1f 1a d3 00 00 ........K....... D (78596) SIMCOM tx: 1a 32 26 03 4c 2a 50 10 16 8a 87 cf 00 00 22 59 .2&.L*P......."Y D (78596) SIMCOM tx: 7e 45 f9 ~E. D (78986) SIMCOM rx: f9 09 ff 23 7e ff 7d 23 c0 21 7d 25 7d 23 7d 20 ...#~.}#.!}%}#} D (78986) SIMCOM rx: 7d 24 85 72 7e 1f f9 f9 0d ff 2f 0d 0a 2b 50 50 }$.r~...../..+PP D (78986) gsm-mux: ProGuru Meditation Error of type LoadProhibited occurred on core 1. Exception was unhandled. Register dump: PC : 0x4017fd75 PS : 0x00060b30 A0 : 0x8017fdb6 A1 : 0x3ffcf030 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2)
A2 : 0x0000f01d A3 : 0x00000000 A4 : 0x3ffeb04c A5 : 0x3f429a88 A6 : 0x00000008 A7 : 0x3ffcf258 A8 : 0x8017fd69 A9 : 0x3ffcf010 A10 : 0x00000000 A11 : 0x00000000 A12 : 0x3ffdcd3c A13 : 0x3ffcf240 A14 : 0x00000004 A15 : 0xab9423a7 SAR : 0x00000018 EXCCAUSE: 0x0000001c EXCVADDR: 0x0000f0d2 LBEG : 0x4000c349 LEND : 0x4000c36b LCOUNT : 0x00000000
Backtrace: 0x4017fd75:0x3ffcf030 0x4017fdb3:0x3ffcf050 0x4017dfa2:0x3ffcf070 0x40178617:0x3ffcf0b0 0x40178639:0x3ffcf0e0 0x401786da:0x3ffcf100 0x40178b38:0x3ffcf120 0x4017c272:0x3ffcf140 0x4017c2b3:0x3ffcf160 0x40184cdd:0x3ffcf180 0x401850a1:0x3ffcf1a0 0x401850e8:0x3ffcf1c0 0x401894f9:0x3ffcf1e0 0x40184fd8:0x3ffcf200 0x4018c9ce:0x3ffcf220 0x4018ca0a:0x3ffcf240 0x401880dd:0x3ffcf260 0x40189b19:0x3ffcf280 0x40189bc4:0x3ffcf2a0 0x40187eff:0x3ffcf2c0 0x40184b05:0x3ffcf2e0 0x401a2be8:0x3ffcf310 0x401a2d35:0x3ffcf330 0x401731c9:0x3ffcf350 0x4017fd75: ip4_route at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:250 (discriminator 2)
0x4017fdb3: ip4_route_src at /home/ubuntu/esp/esp-idf/components/lwip/core/ipv4/ip4.c:159
0x4017dfa2: tcp_rst at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp_out.c:1336 (discriminator 4)
0x40178617: tcp_abandon at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x40178639: tcp_abort at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x401786da: tcp_netif_ipv4_addr_changed_pcblist at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1630
0x40178b38: tcp_netif_ipv4_addr_changed at /home/ubuntu/esp/esp-idf/components/lwip/core/tcp.c:1947
0x4017c272: netif_set_ipaddr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:452
0x4017c2b3: netif_set_addr at /home/ubuntu/esp/esp-idf/components/lwip/core/netif.c:330
0x40184cdd: cifaddr at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704
0x401850a1: ipcp_clear_addrs at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2192
0x401850e8: ipcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:2156
0x401894f9: fsm_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:146
0x40184fd8: ipcp_lowerdown at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ipcp.c:687
0x4018c9ce: upper_layers_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:715
0x4018ca0a: link_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/auth.c:701
0x401880dd: lcp_down at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:2341
0x40189b19: fsm_rtermreq at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:597
0x40189bc4: fsm_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/fsm.c:369
0x40187eff: lcp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/lcp.c:513
0x40184b05: ppp_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/ppp.c:704
0x401a2be8: pppos_input at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:578
0x401a2d35: pppos_input_sys at /home/ubuntu/esp/esp-idf/components/lwip/netif/ppp/pppos.c:460 (discriminator 3)
0x401731c9: tcpip_thread at /home/ubuntu/esp/esp-idf/components/lwip/api/tcpip.c:474
Rebooting... ets Jun 8 2016 00:22:57
_______________________________________________ OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev
OvmsDev mailing list OvmsDev@lists.teslaclub.hk http://lists.teslaclub.hk/mailman/listinfo/ovmsdev

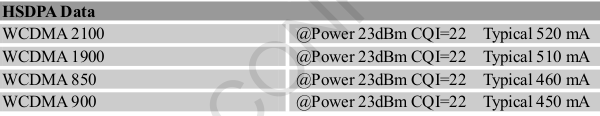

I've never managed to even power on the simcom from my standard USB 2.0 port, so I've had it on a powered hub all the time. From the SIM5360 hardware design docs:
For the VBAT, the ripple due to GSM/GPRS emission burst (every 4.615ms)may cause voltage drop, and the current consumption rises typically to peak of 2A. So the power supply must be able to provide sufficient current up to more than 2A.
So HSPA data transmission + GPS may add up to 550 - 620 mA, and the supply needs to cope with the bursts. The modem operates at 3.8 V (?), so the 5 V load will be lower, but the ESP and peripherals add. USB 2.0 is spec'd at 500 mA, 3.0 at 900 mA. Can someone measure the actual current consumption? My multimeters are far too slow. Regards, Michael Am 17.12.2017 um 04:26 schrieb Greg D.:
Random data points...
Powering the module from the high power USB port (the one with the lightning bolt next to the USB symbol) is rock solid. GSM connection is 2 "bars", as displayed by Android app. Doesn't matter if WiFi is on or off; nicely stable. I just have a ham radio HT antenna screwed into the GSM port (well, it was handy, and I don't have a real GSM antenna).
If I power the module from my Raspberry Pi 2 (with USB high power enabled), the module overall is stable (doesn't crash), but the modem never makes it up - the power on message pair just repeat every few seconds. WiFi works, however.
Greg
Mark Webb-Johnson wrote:
I too have started to see these under-voltage warnings. I’m wondering if it is something to do with the work we recently did to enable GPS. It doesn’t seem to be a problem with powered HUBs or high power boards, so is most likely an actual low voltage condition.
Regards, Mark.
On 16 Dec 2017, at 5:59 PM, Tom Parker <tom@carrott.org> wrote:
I've found the SIMCOM modem is very unstable when connected to my laptop via an unpowered USB hub. I see under-voltage warnings so I wonder if there isn't enough power? It seems stable when connected directly to my laptop. When it the modem reboots, the esp32 crashes too. I'm not sure if this is because it also ran out of power or because it is sad the network went away:
-- Michael Balzer * Helkenberger Weg 9 * D-58256 Ennepetal Fon 02333 / 833 5735 * Handy 0176 / 206 989 26
